15.2 SAML Onboarding Guide

This guide will walk you through the process of configuring SAML authentication between your school's identity provider (IdP) and our Auth0-based application. This setup will enable single sign-on (SSO) for your users, allowing them to access our platform using their existing school credentials.

Prerequisites

Before starting, ensure you have:

• Administrative access to your school's identity provider (Google Workspace, Microsoft Azure AD, Okta, etc.)
• The SAML metadata or configuration details from the CurricuLLM Team
• Permission to create and configure SAML applications in your IdP

Step 1: Gather Required Information from CurricuLLM Team

You'll need the following information from our Auth0 configuration:

Required Auth0 Details:

• Entity ID (Identifier): urn:auth0:curricullm-prod:hello-curricullm-
• ACS URL (Callback URL): https://curricullm-prod.au.auth0.com/login/callback?connection=hello-curricullm-
• Relay State URL: https://app.curricullm.com/chat
• Logout URL: https://app.curricullm.com/logout

Note: We will provide these specific values for your school's configuration.

Step 2: Configure SAML Application in Your Identity Provider

For now, we are covering steps relating to Microsoft Azure AD. In the future, documentation will be updated to support Google, Okta and other major IDP providers.

For Microsoft Azure Entra ID:

• Access Azure Portal
  • Sign in to the Azure portal
  • Navigate to Microsoft Entra ID → Enterprise applications

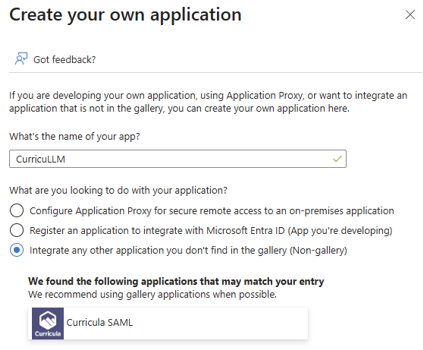

• Create New Application
  • Click New application → Create your own application
  • In our example we have chosen to use the application name CurricuLLM
  • Select "Integrate any other application you don't find in the gallery"
  • Click "Create"
• Configure Single Sign-On
  • Go to Single sign-on → SAML
  • Click Edit on Basic SAML Configuration
  • Replace '999999' with the ID provided to you by the CurricuLLM team

Basic SAML Configuration

• Identifier (Entity ID): Enter our provided Entity ID
  • urn:auth0:curricullm-prod:hello-curricullm-
• Reply URL (ACS URL): Enter our provided ACS URL
  • https://curricullm-prod.au.auth0.com/login/callback?connection=hello-curricullm-

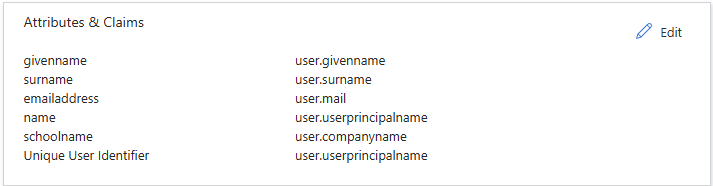

Attributes & Claims

Ensure the following claims are configured:

Please ensure that user.mail attribute for the user object is populated. CurricuLLM relies on this attribute to correctly map users to organisations internally. If this is not the case in your instance, please let us know and we can configure alternative claims for the user email address attribute.

SAML Signing Certificate and Login/Logout URLs

• Download the Certificate (Base64)

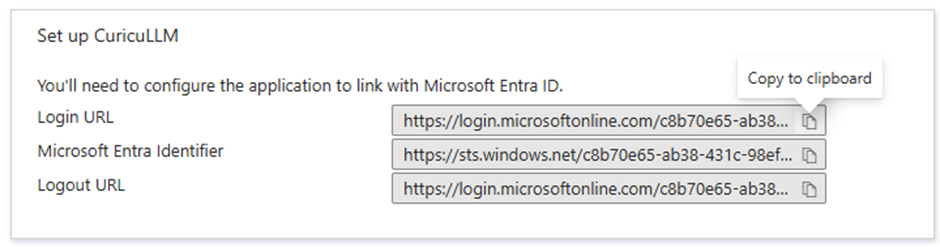

• Copy the Login URL and Logout URL from the newly configured SAML-based Sign On
• Share these with our team at security@curricullm.com

You will need to provide:

• Downloaded Certificate (Base64), renamed to .cer
• Login URL
• Logout URL

Step 3: Test the Configuration

Please note that these steps may vary depending on your configuration.

Assign Users

• Assign users to the SAML application if you have not already done so
• Start with your account or a subset of users

Initial Testing

• Have users attempt to log in through the SSO URL: https://app.curricullm.com/

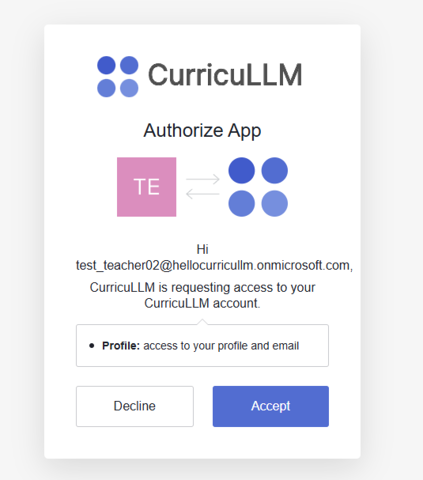

• Upon initial login, you may be prompted to Authorise App. This provides CurricuLLM with the necessary privileges to access limited user metadata which we use in our application to identify you and create your user record.
• Confirm that users can access the application at https://app.curricullm.com/chat

Known Issues

• Email does not match any enterprise directory
  • CurricuLLM matches known email domains for its customers to each customer org internally. Please check to ensure you are using a valid email domain for your school. If you believe you are, but still receive this message, please reach out to us at helpdesk@curricullm.com
• User Communication
  • Inform users about the new SSO login process.

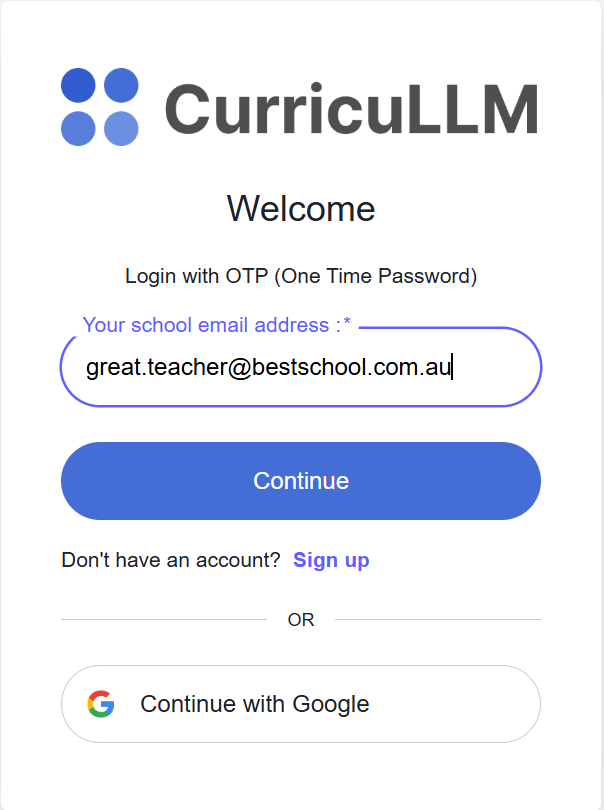

  • We note that at present it can be quite confusing seeing "Email address*" AND "Continue with Microsoft Account" which appear to be the same option if you are using a Microsoft IDP. We are evaluating the viability of continuing to provide personal Microsoft account authentication as part of our trial.
  • Provide instructions for accessing the platform through your own portal.
  • Please reach out to us if you would like us to evaluate the use of IdP-initiated SSO for your use case. We have chosen to disable this by default for all new SAML configurations.
  • Set up support channels for login issues

Next Steps

After successful SAML configuration:

• User Training: Schedule training sessions for end users to help them understand the login process
• Documentation: Create internal documentation for future reference
• Regular Reviews: Periodically review user access and permissions

Need Additional Support?

Contact our technical team at helpdesk@curricullm.com with "SAML Setup" in the subject line for dedicated assistance with your configuration.
